Senco PC1131
2.5 HP Compressor

See also
PC1005 1 hp Compressor		 See also
PC2001 2 hp Compressor		 See also
Hoses

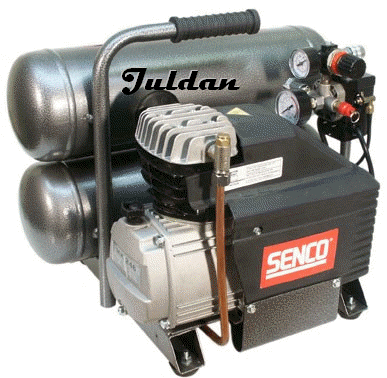

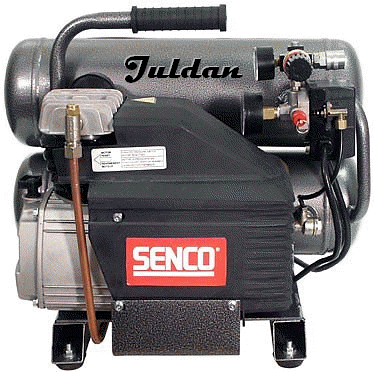

PC1131 - 2.5 HP Hand Carry Compressor by Senco
Senco PC1131 2.5 HP Compressor   Generates 4.4 SCFM @ 90 PSI
Recovery time: 16 seconds
4.3 gal. - twin tanks
SENCO’s PC1131 workhorse compressor generates 4.4 CFM which provides enough power for all types of applications, from finish to framing. The oil splash design and induction motor provides the durability expected for professional contractors.

Applications
 Framing and Sheathing
Roofing and Decking
Finish and Trim

Features and Benefits
 • Oil-splash design for exceptional durability
• Direct drive pump and induction motor for efficient operation
• Twin vertically stacked tanks
• Cast iron cylinder for superior pump life
• Draws only 14 amps, so it won’t trip circuit breakers
• Cold start valve allows for easy start-up in cold climates
• Electric overload protection switch with manual reset
• One year warranty

Specifications
Item Number: PC1131
Power Source: Electric
Current Draw: 14 amps @115V
Horsepower: 2.5 HP Peak (2.0 HP Running)
Tank Storage: 4.3 gallon
Pump: Oil splash
Pump Speed: 3450 rpm
SCFM @ 90 psi: 4.4
Max Pressure: 125 psi
Pump-up Time: 67sec (0-125 psi)
Recovery Time: 16 sec (90-125 psi)
Weight: 60 lbs.
Dimensions: Length 20"; Width 14.5"; Height 16.5"
Includes ¼" universal coupler and compressor oil

Senco PC1131 2.5 HP Compressor
