Senco PC1130
1.5 HP Compressor

See also
PC1005 1hp Compressor		 See also
PC2001 2hp Compressor		 See also
Hoses

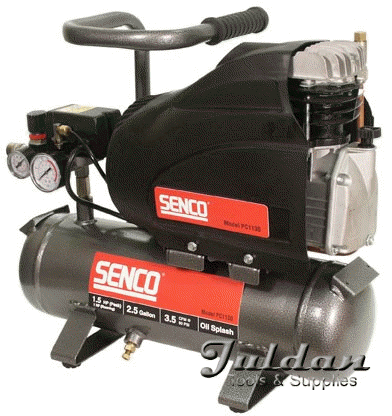

PC1130 - 1.5 HP Hand Carry Compressor by Senco
Senco PC1130 1.5 HP Compressor    Generates 3.5 SCFM @ 90 PSI
Recovery time: 10 seconds
2.5 gal. tank
Ideal for the professional contractor who requires the durability of an oil lubricated compressor and desires a lightweight unit for finish and trim applications. The slim and quiet design make the Senco PC1130 the choice of Finish and Trim Contractors and Remodelers.

Features and Benefits
 • Oil-splash design for exceptional durability
• Direct drive pump and induction motor for efficient operation
• Lightweight "hot dog" design for easy maneuverability
• Cast iron cylinder for superior pump life
• Draws only 13 amps, so it won’t trip circuit breakers
• Cold start valve allows for easy start-up in cold climates
• Electric overload protection switch with manual reset
• One full year limited warranty

Specifications
Item Number: PC1130
Power Source: Electric
Current Draw: 13 amps @115V
Horsepower: 1.5 HP Peak (1.0 HP Running)
Tank Storage: 2.5 gallon
Pump: Oil Splash
Pump Speed: 3400 rpm
SCFM @ 90 psi: 3.5
Max Pressure: 125 psi
Pump-up Time: 39 sec (0-125 psi)
Recovery Time: 10 sec (90-125 psi)
Weight: 39 lbs
Dimensions: Length 20.5"; Width 8"; Height 18.5"
Includes Ό" universal coupler and compressor oil

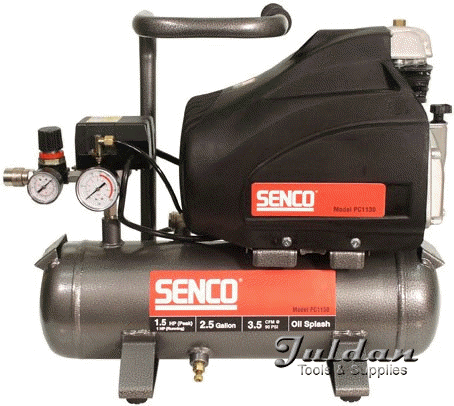

Senco PC1130 1.5 HP Compressor
